Carbon 29er Mountain Bicycle Hardtail Frame for Cross Country 1180g - Gaea

GAEA is a versatile and lightweight crosscountry bike frame.

www.carbonalbike.com

As a dedicated enthusiast she values performance, quality, and reliability.
Naturally competitive, whether against herself on the toughest climb of her favorite trail or a field of competitors in an endurance event, the GAEA rider demands the premium performance carbon hardtail 29er can deliver.

 Carbonal Gaea frame

Four sizes available: 15"/17"/19"/21", frame weight at 1180gram, and with tapered headtube 1-1/8" upper and 1-1/2" lower, Travel: 100mm, and disc 160mm.

Max tyre size: 29 inch x 2.3".

Two dropouts system: 135x10mm QR and 142x12mm thru axle.

http://www.carbonalbike.com/carbon-29er-mountain-bicycle-hardtail-frames-cross-country-bike-frame-1180g-gaea.html

www.carbonalbike.com

27.5 Plus mountain bike 50mm wide hookless carbon rim tubeless compatible

27.5 plus carbon rim with 50mm wide, hookless and tubeless compatible.

50mm wide plus rim profile

Max rider weight 130kgs/ 286lbs, this carbon plus rim can hold most riders weight.

32 spoke holes is standard holes for most mtb hubs, and come with 3mm offset,this can creates a more uniform spoke tension between the drive and non-drive side of the wheel resulting in greater strength and reliablity.

3mm offset drill hole

Hookless rim bead, more staight and smooth side walls, tire can touch rim walls fully. And hookless rim bead offer more durable and impact resistance compared to a clincher rim.

http://www.carbonalbike.com/carbon-50mm-wide-hookless-rim-for-27-5-plus-mountain-bikes-tubeless-compatible.html

www.carbonalbike.com

Super light 29er XC rim, carbon mountain bicycle rim for cross country

This is a 24mm width 23.5mm depth 29 inch carbon rim, it's a very lightweight carbon 29er rim 350+/-15gram only!!

www.carbonalbike.com

Carbonal MC923 rim

18.93mm internal width, which can fit most tire sizes.

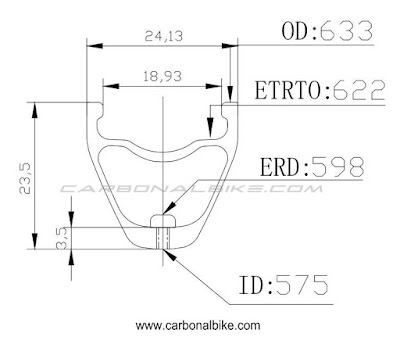

MC923 rim geometry

A table show which tire fit which rim

http://www.carbonalbike.com/carbon-mountain-bike-24mm-wide-23-5mm-depth-clincher-tubeless-29er-xc-carbon-rim.html

700c road bicycle 23mm wide 38mm depth tubular bike carbon rim with basalt brake surface

23mm width and 38mm depth, weight: 330gram / 0.73 lbs per piece.

www.carbonalbike.com

38mm tubular rim profile

Consturcted with premium Toray T700 carbon fiber, precise layup to achieve a most lightweight. Basalt brake surface, basalt is a naturally fire-resistant hard and dense valcanic rock to minimize heat buildup and improve overall stopping performance of the carbon wheel, make carbon rim more quiet and durable.

Hand-built 38mm tubuar wheelset

Max rider weight at 115kgs / 253lbs, available spoke holes: 16/20/24/28/32/36 holes, accept customized drill holes, ERD 570mm, assembly hole diameter 7.5mm, Valve hole diameter 6.5mm. Min Tire pressure: 90psi, and recommended max cycling tire pressure 120psi.

It's a perfect carbon rim for road racing, training and normal flat road ride use.

http://www.carbonalbike.com/700c-road-bicycle-23mm-wide-38mm-depth-tubular-bike-carbon-rim-with-basalt-brake-surface.html

Super Light 700C Carbon Road Bicycle Frameset With Vibration Reduce System 950g - CKRB01

CKRB01 Complete Bike

Carbonal New arrival super lightweight 700C carbon road bicycle frameset CKRB01, the frame weight 950gram only, fork 380gram.

www.carbonalbike.com

This lightweight carbon road frameset come with VRS - Vibration Reduce System. Carbon fiber and kevlar fiber in the seat stay and front fork. Why use kevlar fiber, not just for more good looking, it's because kevlar fiber is not so stiffness as carbon, so both the VRS system on rear seat stay and front fork can absorb vibration from front and rear wheel, the rider is more comfortable. The VRS system no need to be replaced and not adjustable.

VRS system

And this frameset also come with Grid System, 30% higher stiffness for front triangle. Special reforced grid all around front triangle, to make the frame stronger, more stiff, but without a lot of material and weight.

Grid System

This frameset made in Toray T700 carbon fiber and Kevlar fiber, available 5 sizes 49/52/54/56/59cm (seat tube length), ud black matt finish. The seat post is 27.2mm, tapered head tube: 1-1/8" upper and 1-1/2" lower, seatclamp 31.6mm. All internal cable routing, available BSA/BB30/BB86. Max Tyre compatible 700 x 25c.

http://www.carbonalbike.com/carbon-road-bike/700c-carbon-road-bicycle-frameset-950g-ckrb01.html

Carbon Mountain Bike 24mm Wide 23.5mm Depth Clincher Tubeless 26er XC Carbon Rim

3k matt finish rim

Rim Section

This is 26 inch carbon mountain bicycle rim, designed for Cross country use, made in Toray T700 Carbon fiber, and enhanced with Titanium wire.

Rim type clincher, with 18.93mm inner width and 24.13mm outer width, and depth 23.5mm, compatible with tubeless tire, max tire pressure 60psi, min tire pressure 25psi.

The standard spoke holes available 28, 32, 36 holes, assembly hole diameter 7.5mm, and valve hole diameter 6.5mm, max spoke tension: 140kgf, recommended spoke tension 110-130kgf.

www.carbonalbike.com

Rim made in one piece molding, made by one piece long carbon fiber, no wrinkles, which make the strength of rim is the strongest. And enhanced with titanium wire in both sides of rim flange, so even the rim/wheels hit something sharp and hard, the full circle titanium wire can keep rim/wheel in one piece, not break in pieces, the rider is safe.

http://www.carbonalbike.com/carbon-mountain-bike-24mm-wide-23-5mm-depth-clincher-tubeless-26er-xc-carbon-rim.html
